1.Android消息处理机制概述

Android消息处理机制实际上就是Handler的运行机制,他能够很轻松的在线程间传递数据。由于Android开发规范的限制,我们不能在主线程执行耗时操作(如网络,IO操作等),不能在子线程更新UI,所以Handler大部分用来在耗时操作与更新UI之间切换。除了Handler之外,我们还需要一个消息队列MessageQueue,用于存放Handler发送过来的Message。然后,Android中的Looper类提供了两个方法:prepare()loop(),前者用来创建MessageQueue,后者用来循环遍历MessageQueue并取出Message交给Handler处理。
1) Message:消息实体。
2) MessageQueue:消息队列。
3) Looper:创建消息队列,循环遍历消息队列。
4) Handler:发送、处理消息实体。

 2.Android消息处理机制的工作原理

2.1. 工作原理图

2.2. 类关系图

从上两张图中我们可以得到以下结论:

  1. Looper依赖于MessageQueue和Thread,每个Thread只对应一个Looper,每个Looper只对应一个MessageQueue(一对一)。
  2. MessageQueue依赖于Message,每个MessageQueue中有N个待处理消息(一对N)。
  3. Message依赖于Handler来进行处理,每个Message有且仅有一个对应的Handler。(一对一)
  4. Handler中持有Looper和MessageQueue的引用,可直接对其进行操作。

 3. Looper,Handler,MessageQueue,Message

3.1.  Looper

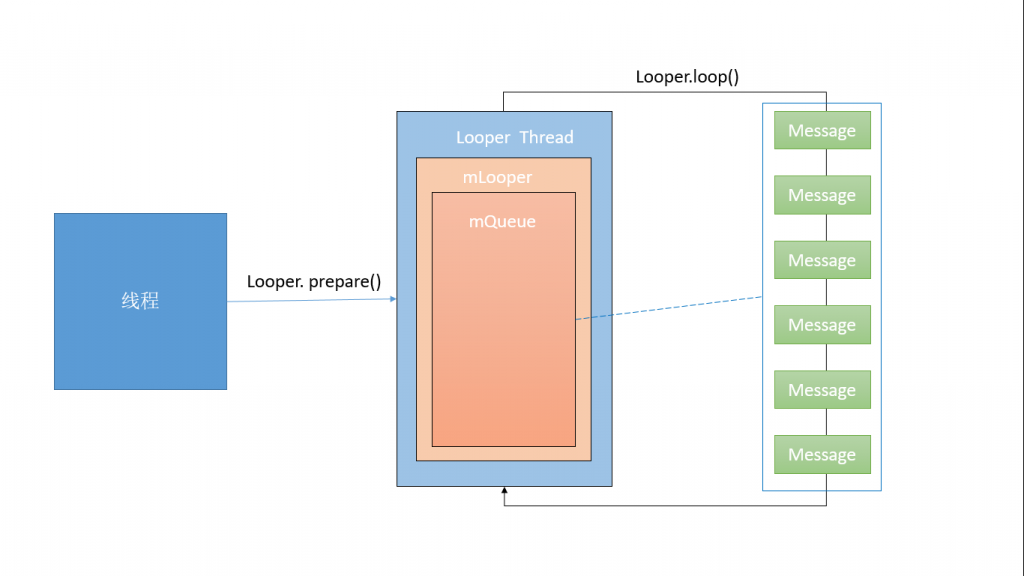

Looper的字面意思是“循环者”,它被设计用来使一个普通线程变成Looper线程。所谓Looper线程就是循环工作的线程。在程序开发中(尤其是GUI开发中),我们经常会需要一个线程不断循环,一旦有新任务则执行,执行完继续等待下一个任务,这就是Looper线程。使用Looper类创建Looper线程很简单:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
 class LooperThread extends Thread {
     public Handler mHandler;

     public void run() {
         Looper.prepare();

         mHandler = new Handler() {
             public void handleMessage(Message msg) {
                 // process incoming messages here
             }
         };

         Looper.loop();
     }
 }

通过上面两行核心代码,你的线程就升级为Looper线程了,让我们看看Lopper的源码吧。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
/*
 * Copyright (C) 2006 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package android.os;

import android.annotation.NonNull;
import android.annotation.Nullable;
import android.os.LooperProto;
import android.util.Log;
import android.util.Printer;
import android.util.Slog;
import android.util.proto.ProtoOutputStream;

/**
  * Class used to run a message loop for a thread.  Threads by default do
  * not have a message loop associated with them; to create one, call
  * {@link #prepare} in the thread that is to run the loop, and then
  * {@link #loop} to have it process messages until the loop is stopped.
  *
  * <p>Most interaction with a message loop is through the
  * {@link Handler} class.
  *
  * <p>This is a typical example of the implementation of a Looper thread,
  * using the separation of {@link #prepare} and {@link #loop} to create an
  * initial Handler to communicate with the Looper.
  *
  * <pre>
  *  class LooperThread extends Thread {
  *      public Handler mHandler;
  *
  *      public void run() {
  *          Looper.prepare();
  *
  *          mHandler = new Handler() {
  *              public void handleMessage(Message msg) {
  *                  // process incoming messages here
  *              }
  *          };
  *
  *          Looper.loop();
  *      }
  *  }</pre>
  */
public final class Looper {
    /*
     * API Implementation Note:
     *
     * This class contains the code required to set up and manage an event loop
     * based on MessageQueue.  APIs that affect the state of the queue should be
     * defined on MessageQueue or Handler rather than on Looper itself.  For example,
     * idle handlers and sync barriers are defined on the queue whereas preparing the
     * thread, looping, and quitting are defined on the looper.
     */

    private static final String TAG = "Looper";

    // sThreadLocal.get() will return null unless you've called prepare().
    static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();
    private static Looper sMainLooper;  // guarded by Looper.class

    final MessageQueue mQueue;
    final Thread mThread;

    private Printer mLogging;
    private long mTraceTag;

    /* If set, the looper will show a warning log if a message dispatch takes longer than time. */
    private long mSlowDispatchThresholdMs;

     /** Initialize the current thread as a looper.
      * This gives you a chance to create handlers that then reference
      * this looper, before actually starting the loop. Be sure to call
      * {@link #loop()} after calling this method, and end it by calling
      * {@link #quit()}.
      */
    public static void prepare() {
        prepare(true);
    }

    private static void prepare(boolean quitAllowed) {
        if (sThreadLocal.get() != null) {
            throw new RuntimeException("Only one Looper may be created per thread");
        }
        sThreadLocal.set(new Looper(quitAllowed));
    }

    /**
     * Initialize the current thread as a looper, marking it as an
     * application's main looper. The main looper for your application
     * is created by the Android environment, so you should never need
     * to call this function yourself.  See also: {@link #prepare()}
     */
    public static void prepareMainLooper() {
        prepare(false);
        synchronized (Looper.class) {
            if (sMainLooper != null) {
                throw new IllegalStateException("The main Looper has already been prepared.");
            }
            sMainLooper = myLooper();
        }
    }

    /**
     * Returns the application's main looper, which lives in the main thread of the application.
     */
    public static Looper getMainLooper() {
        synchronized (Looper.class) {
            return sMainLooper;
        }
    }

    /**
     * Run the message queue in this thread. Be sure to call
     * {@link #quit()} to end the loop.
     */
    public static void loop() {
        final Looper me = myLooper();
        if (me == null) {
            throw new RuntimeException("No Looper; Looper.prepare() wasn't called on this thread.");
        }
        final MessageQueue queue = me.mQueue;

        // Make sure the identity of this thread is that of the local process,
        // and keep track of what that identity token actually is.
        Binder.clearCallingIdentity();
        final long ident = Binder.clearCallingIdentity();

        for (;;) {
            Message msg = queue.next(); // might block
            if (msg == null) {
                // No message indicates that the message queue is quitting.
                return;
            }

            // This must be in a local variable, in case a UI event sets the logger
            final Printer logging = me.mLogging;
            if (logging != null) {
                logging.println(">>>>> Dispatching to " + msg.target + " " +
                        msg.callback + ": " + msg.what);
            }

            final long slowDispatchThresholdMs = me.mSlowDispatchThresholdMs;

            final long traceTag = me.mTraceTag;
            if (traceTag != 0 && Trace.isTagEnabled(traceTag)) {
                Trace.traceBegin(traceTag, msg.target.getTraceName(msg));
            }
            final long start = (slowDispatchThresholdMs == 0) ? 0 : SystemClock.uptimeMillis();
            final long end;
            try {
                msg.target.dispatchMessage(msg);
                end = (slowDispatchThresholdMs == 0) ? 0 : SystemClock.uptimeMillis();
            } finally {
                if (traceTag != 0) {
                    Trace.traceEnd(traceTag);
                }
            }
            if (slowDispatchThresholdMs > 0) {
                final long time = end - start;
                if (time > slowDispatchThresholdMs) {
                    Slog.w(TAG, "Dispatch took " + time + "ms on "
                            + Thread.currentThread().getName() + ", h=" +
                            msg.target + " cb=" + msg.callback + " msg=" + msg.what);
                }
            }

            if (logging != null) {
                logging.println("<<<<< Finished to " + msg.target + " " + msg.callback);
            }

            // Make sure that during the course of dispatching the
            // identity of the thread wasn't corrupted.
            final long newIdent = Binder.clearCallingIdentity();
            if (ident != newIdent) {
                Log.wtf(TAG, "Thread identity changed from 0x"
                        + Long.toHexString(ident) + " to 0x"
                        + Long.toHexString(newIdent) + " while dispatching to "
                        + msg.target.getClass().getName() + " "
                        + msg.callback + " what=" + msg.what);
            }

            msg.recycleUnchecked();
        }
    }

    /**
     * Return the Looper object associated with the current thread.  Returns
     * null if the calling thread is not associated with a Looper.
     */
    public static @Nullable Looper myLooper() {
        return sThreadLocal.get();
    }

    /**
     * Return the {@link MessageQueue} object associated with the current
     * thread.  This must be called from a thread running a Looper, or a
     * NullPointerException will be thrown.
     */
    public static @NonNull MessageQueue myQueue() {
        return myLooper().mQueue;
    }

    private Looper(boolean quitAllowed) {
        mQueue = new MessageQueue(quitAllowed);
        mThread = Thread.currentThread();
    }

    /**
     * Returns true if the current thread is this looper's thread.
     */
    public boolean isCurrentThread() {
        return Thread.currentThread() == mThread;
    }

    /**
     * Control logging of messages as they are processed by this Looper.  If
     * enabled, a log message will be written to <var>printer</var>
     * at the beginning and ending of each message dispatch, identifying the
     * target Handler and message contents.
     *
     * @param printer A Printer object that will receive log messages, or
     * null to disable message logging.
     */
    public void setMessageLogging(@Nullable Printer printer) {
        mLogging = printer;
    }

    /** {@hide} */
    public void setTraceTag(long traceTag) {
        mTraceTag = traceTag;
    }

    /** {@hide} */
    public void setSlowDispatchThresholdMs(long slowDispatchThresholdMs) {
        mSlowDispatchThresholdMs = slowDispatchThresholdMs;
    }

    /**
     * Quits the looper.
     * <p>
     * Causes the {@link #loop} method to terminate without processing any
     * more messages in the message queue.
     * </p><p>
     * Any attempt to post messages to the queue after the looper is asked to quit will fail.
     * For example, the {@link Handler#sendMessage(Message)} method will return false.
     * </p><p class="note">
     * Using this method may be unsafe because some messages may not be delivered
     * before the looper terminates.  Consider using {@link #quitSafely} instead to ensure
     * that all pending work is completed in an orderly manner.
     * </p>
     *
     * @see #quitSafely
     */
    public void quit() {
        mQueue.quit(false);
    }

    /**
     * Quits the looper safely.
     * <p>
     * Causes the {@link #loop} method to terminate as soon as all remaining messages
     * in the message queue that are already due to be delivered have been handled.
     * However pending delayed messages with due times in the future will not be
     * delivered before the loop terminates.
     * </p><p>
     * Any attempt to post messages to the queue after the looper is asked to quit will fail.
     * For example, the {@link Handler#sendMessage(Message)} method will return false.
     * </p>
     */
    public void quitSafely() {
        mQueue.quit(true);
    }

    /**
     * Gets the Thread associated with this Looper.
     *
     * @return The looper's thread.
     */
    public @NonNull Thread getThread() {
        return mThread;
    }

    /**
     * Gets this looper's message queue.
     *
     * @return The looper's message queue.
     */
    public @NonNull MessageQueue getQueue() {
        return mQueue;
    }

    /**
     * Dumps the state of the looper for debugging purposes.
     *
     * @param pw A printer to receive the contents of the dump.
     * @param prefix A prefix to prepend to each line which is printed.
     */
    public void dump(@NonNull Printer pw, @NonNull String prefix) {
        pw.println(prefix + toString());
        mQueue.dump(pw, prefix + "  ", null);
    }

    /**
     * Dumps the state of the looper for debugging purposes.
     *
     * @param pw A printer to receive the contents of the dump.
     * @param prefix A prefix to prepend to each line which is printed.
     * @param handler Only dump messages for this Handler.
     * @hide
     */
    public void dump(@NonNull Printer pw, @NonNull String prefix, Handler handler) {
        pw.println(prefix + toString());
        mQueue.dump(pw, prefix + "  ", handler);
    }

    /** @hide */
    public void writeToProto(ProtoOutputStream proto, long fieldId) {
        final long looperToken = proto.start(fieldId);
        proto.write(LooperProto.THREAD_NAME, mThread.getName());
        proto.write(LooperProto.THREAD_ID, mThread.getId());
        proto.write(LooperProto.IDENTITY_HASH_CODE, System.identityHashCode(this));
        mQueue.writeToProto(proto, LooperProto.QUEUE);
        proto.end(looperToken);
    }

    @Override
    public String toString() {
        return "Looper (" + mThread.getName() + ", tid " + mThread.getId()
                + ") {" + Integer.toHexString(System.identityHashCode(this)) + "}";
    }
}
 如果没有看太懂源代码,那就看下图:

到此为止,我们应该对Looper有了基本的了解,总结几点:
1.每个线程有且最多只能有一个Looper对象,它是一个ThreadLocal
2.Looper内部有一个消息队列,loop()方法调用后线程开始不断从队列中取出消息执行
3.Looper使一个线程变成Looper线程。

3.2.  Handler

Handler扮演了往MQ上添加消息和处理消息的角色(只处理由自己发出的消息),即通知MQ它要执行一个任务(sendMessage),并在loop到自己的时候执行该任务(handleMessage),整个过程是异步的。handler创建时会关联一个looper,默认的构造方法将关联当前线程的looper,不过这也是可以set的。

1. 发送消息
有了handler之后,我们就可以使用 post(Runnable)postAtTime(Runnable, long)postDelayed(Runnable, long)sendEmptyMessage(int),sendMessage(Message)sendMessageAtTime(Message, long)和 sendMessageDelayed(Message, long)这些方法向MQ上发送消息了。光看这些API你可能会觉得handler能发两种消息,一种是Runnable对象,一种是message对象,这是直观的理解,但其实post发出的Runnable对象最后都被封装成message对象了。
2.处理消息
 消息的处理是通过核心方法dispatchMessage(Message msg)与钩子方法handleMessage(Message msg)完成的。
 3.Handler作用
1).handler可以在任意线程发送消息,这些消息会被添加到关联的MQ上。
2).handler是在它关联的looper线程中处理消息的。
这就解决了android最经典的不能在其他非主线程中更新UI的问题。android的主线程也是一个looper线程(looper在android中运用很广),我们在其中创建的handler默认将关联主线程MQ。因此,利用handler的一个solution就是在activity中创建handler并将其引用传递给worker thread,worker thread执行完任务后使用handler发送消息通知activity更新UI。
4.可能存在的问题:内存泄露
1). 有延时消息,要在Activity销毁的时候移除Messages(消息队列清空)。
2). 匿名内部类导致的泄露改为匿名静态内部类,并且对上下文或者Activity使用弱引用。

3.3.  Message

在整个消息处理机制中,message又叫task,封装了任务携带的信息和处理该任务的handler。message的用法比较简单,这里不做总结了。但是有这么几点需要注意:

1.尽管Message有public的默认构造方法,但是你应该通过Message.obtain()来从消息池中获得空消息对象,以节省资源。

2.如果你的message只需要携带简单的int信息,请优先使用Message.arg1和Message.arg2来传递信息,这比用Bundle更省内存

3.擅用message.what来标识信息,以便用不同方式处理message。

4.Message.obtain()的消息池上限是50个。

  4.引申-子线程有哪些更新UI的方法

  1. 主线程中定义Handler,子线程通过mHandler发送消息,主线程Handler的handleMessage更新UI。
  2. 用Activity对象的runOnUiThread方法。
  3. 创建Handler,传入getMainLooper
  4. View.post(Runnable r) 。
  5. 通过AsyncTask来实现。

这五种查看源码得知都用到了Handler进行和UI线程进行交互。

5. 简单例子

1).Activity

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
public class HandlerActivity extends AppCompatActivity {

    private TextView mTextView;
    private MyHandler mHandler;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_handler);
        initView();
        processData();
    }

    @Override
    protected void onDestroy() {
        if (mHandler != null)
            mHandler.removeCallbacksAndMessages(null);
        super.onDestroy();
    }

    private void initView() {
        mTextView = findViewById(R.id.tv_show);
    }

    private void processData(){
        mHandler = new MyHandler(this);
        // create worker threed
        Thread workerThread = new Thread(new SampleTask(mHandler));
        workerThread.start();
    }

    public static class MyHandler extends Handler {
        WeakReference<HandlerActivity< mWeakReference;

        public MyHandler(HandlerActivity activity) {
            mWeakReference = new WeakReference<>(activity);
        }

        @Override
        public void handleMessage(Message msg) {
            if (msg == null){
                return;
            }
            Bundle bundle = msg.getData();
            if (bundle == null){
                return;
            }
            String result = bundle.getString("message");
            HandlerActivity activity = mWeakReference.get();
            if (activity != null && activity.mTextView != null) {
                activity.mTextView.setText(result);
            }
        }
    }
}

2).Thread

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
/**
 * Created by aoaoyi on 2018/5/19 21:05
 *
 * Email aoaoyi.com@gmail.com
 */
public class SampleTask implements Runnable {
    private static final String TAG = SampleTask.class.getSimpleName();
    Handler mHandler;

    public SampleTask(Handler handler) {
        super();
        mHandler = handler;
    }

    @Override
    public void run() {
        try {
            // 模拟执行某项任务,下载等
            //Thread.sleep(5000);
            // 任务完成后通知activity更新UI
            Message msg = prepareMessage("task completed!");
            // message将被添加到主线程的MQ中
            mHandler.sendMessageDelayed(msg, 5000);
        } catch (Exception e) {
            Log.d(TAG, "interrupted!");
        }
    }

    private Message prepareMessage(String str) {
        Message result = mHandler.obtainMessage();
        Bundle data = new Bundle();
        data.putString("message", str);
        result.setData(data);
        return result;
    }
}
延伸阅读:
